Blade Silent Light

The acoustic BLADE range from Spectral is a system combining luminaires and sound absorbing acoustic panels for the modern office or educational buildings with concrete interiors

In association with

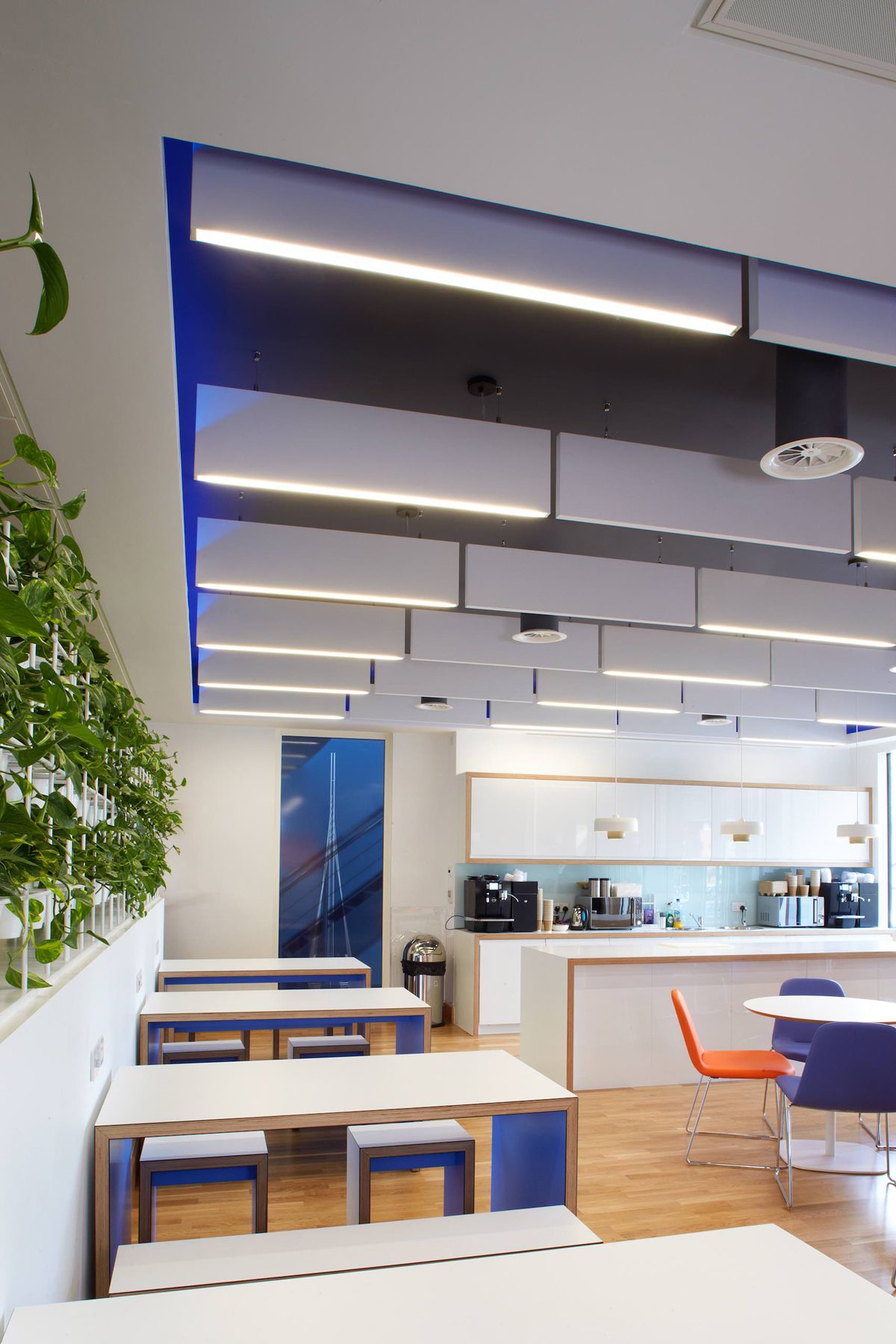

Intended for office or educational buildings with concrete interiors, Spectral Lighting’s innovative acoustic BLADE range combines luminaires and sound absorbing acoustic panels. Suspended vertical baffles provide particularly effective acoustic management, while allowing heat to circulate freely into the buildings concrete structure. Blade matches precisely the look and feel of the acoustic baffles for a seamless installation.

Details

• Pure LED light for exceptional efficiency and low maintenance
• A complete acoustic sound reduction system suspended from the ceiling
• Minimal reduction in thermal efficiency

Blade allows hot air to rise between the baffles. The heat is transferred to the concrete soffit, cooling the air and adding heat to the thermal mass for use later. Conventional suspended ceilings, and horizontal acoustic panels trap heat in the room and prevent the concrete thermal mass from performing effectively.

Create continuous runs

• Edge to edge LED boards
• Plug and socket through wiring
• Magnetic Coupling and end caps

Myriad Finishes

The Blade system is available in any RAL colour, both luminaires and acoustic panels, to match your colour scheme.

Other more unusual finishes can be specified like wood, or wallpaper!

We work with other suppliers to match the room surfaces.

Versions

Blade Light Baffle

Dimensions
Lengths 600, 900, 1200, 1500mm, 1800mm
Heights 300, 400, 500, 600mm
Width 45mm
Source
Replaceable RIDI-Group LED Boards
Output
1,030 – 4,130 lm
Colour Temperature
3,000K, 4,000K
2,700K – 6,500K Tuneable White
Optical Control
Microprismatic, Opal Polar White
Control
DALI, Non-Dimming
